Appendix-05-Selectors

1. `selectors.py` and its design

The selectors module provides a high-level, cross-platform I/O multiplexing interface. It wraps lower-level OS-specific mechanisms:

select()
poll()
epoll() (Linux)
kqueue() (macOS, BSD)

The goal is cross-platform consistency, so most users never need to touch the low-level APIs.

The KqueueSelector class, for example, wraps the kqueue system call on BSD/macOS. That system call is exposed in Python through the select module.

2. What `_selector` is

In your snippet:

kev_list = self._selector.control(None, max_ev, timeout)

_selector is an instance of select.kqueue().
control() is the method provided by Python’s select.kqueue object, which wraps the OS-level kevent system call.

So _selector.control is documented in CPython’s select module:

import select
kq = select.kqueue()
events = kq.control(None, 1, 0)

kev_list is a list of kevent objects.
control() can take a list of changes (here None), the maximum number of events to return (max_ev), and a timeout.

Deep Dive

Exactly! You’re describing the typical event-driven I/O loop for something like a chat server using kqueue. Let me clarify step by step and add some practical details.

1. Objects involved

Suppose you have a socket sock:

Socket (fd)
- This is your actual communication endpoint (TCP/UDP socket).
- Provides the file descriptor integer sock.fileno().

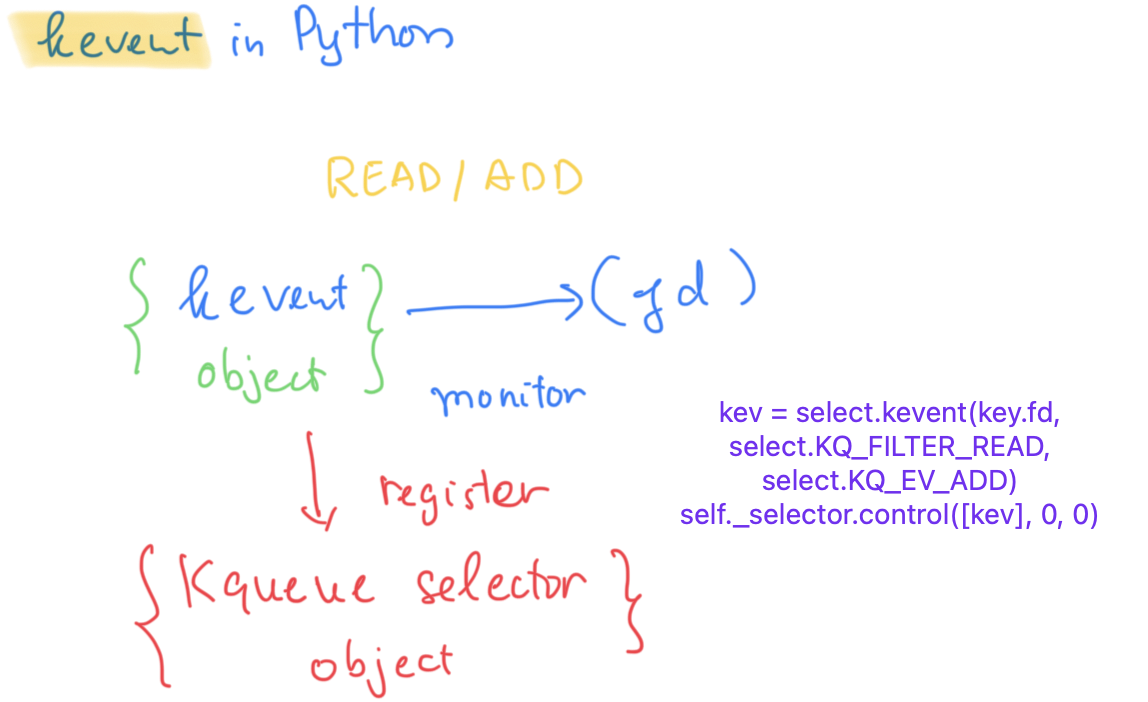

kevent object(s)
- Created for each type of event you care about: READ, WRITE, etc.
- Tells the kernel: “Monitor this fd for these events.”
- Example:

kev_read = select.kevent(sock.fileno(), select.KQ_FILTER_READ, select.KQ_EV_ADD)
kev_write = select.kevent(sock.fileno(), select.KQ_FILTER_WRITE, select.KQ_EV_ADD)

kqueue object
- Manages all registered kevents.
- Tracks which file descriptors are ready.
- Example:

kq = select.kqueue()
kq.control([kev_read, kev_write], 0, 0)  # Register events

Once the socket and events are registered, you need a loop to listen for events:

while True:
    # Wait for events, max 10 at a time, timeout 1 second
    events = kq.control(None, 10, 1.0)

    for kev in events:
        fd = kev.ident
        if kev.filter == select.KQ_FILTER_READ:
            # fd is readable → read data
            data = os.read(fd, 4096)  # or sock.recv()
            handle_read(fd, data)
        elif kev.filter == select.KQ_FILTER_WRITE:
            # fd is writable → send pending data
            handle_write(fd)

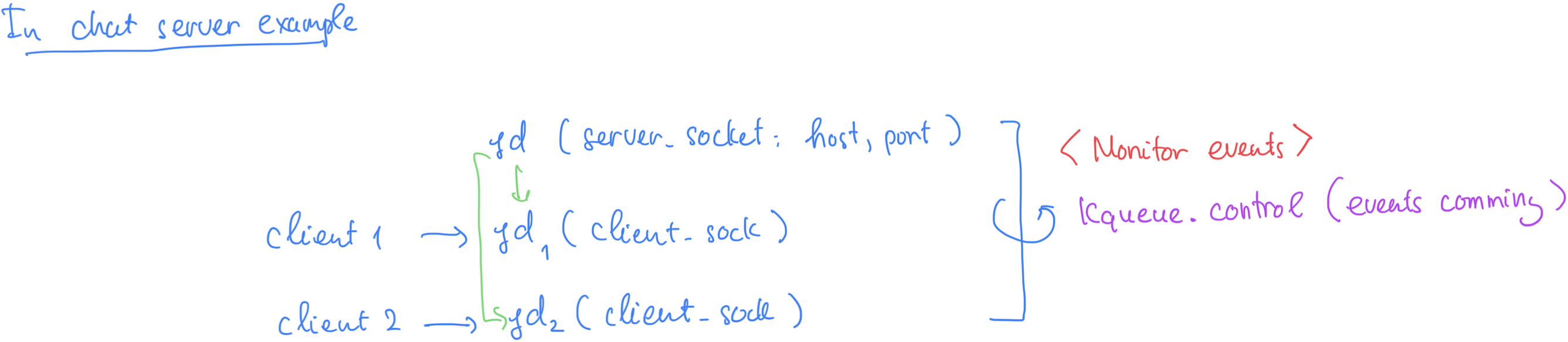

Example: Simple Chat-Server

Server: copy code into simple-chat-server.py
```
python simple-chat-server.py
```
Client 1: Open terminal (in MacOS)

nc 127.0.0.1 7777

Client 2: Open terminal (in MacOS)

nc 127.0.0.1 7777

Source code

import socket
import select
import errno

HOST = '127.0.0.1'
PORT = 7777

# --- Step 1: Create server socket ---
server_sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
server_sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
server_sock.bind((HOST, PORT))
server_sock.listen()
server_sock.setblocking(False)  # important for event-driven I/O

print(f"Chat server running on {HOST}:{PORT}")

# --- Step 2: Create kqueue ---
kq = select.kqueue()

# Register server socket for READ events (new connections)
kev = select.kevent(server_sock.fileno(),
                    filter=select.KQ_FILTER_READ,
                    flags=select.KQ_EV_ADD)
kq.control([kev], 0, 0)

# Map file descriptor → socket object
fd_to_socket = {server_sock.fileno(): server_sock}

# --- Step 3: Event loop ---
while True:
    # Wait for events, max 10 at a time, timeout 1 second
    events = kq.control(None, 10, 1.0)

    for kev in events:
        fd = kev.ident
        sock = fd_to_socket[fd]

        if sock is server_sock:
            # --- New client connection ---
            client_sock, addr = server_sock.accept()
            client_sock.setblocking(False)
            fd_to_socket[client_sock.fileno()] = client_sock

            # Register client for READ events
            kev_client = select.kevent(client_sock.fileno(),

                                       filter=select.KQ_FILTER_READ,
                                       flags=select.KQ_EV_ADD)
            kq.control([kev_client], 0, 0)

            print(f"Client connected from {addr}")

        else:
            # --- Client sent data ---
            try:
                data = sock.recv(4096)
                if data:
                    # Broadcast to all other clients
                    msg = data.decode().strip()
                    print(f"Received from {fd}: {msg}")
                    for other_fd, other_sock in fd_to_socket.items():
                        if other_sock is not server_sock and other_sock is not sock:
                            try:
                                other_sock.sendall(f"(From: {fd}): {msg}\n".encode('utf-8'))
                            except BlockingIOError:
                                pass
                else:
                    # Client closed connection
                    print(f"Client {fd} disconnected")
                    kq.control([select.kevent(fd,
                                               filter=select.KQ_FILTER_READ,
                                               flags=select.KQ_EV_DELETE)], 0, 0)
                    sock.close()
                    del fd_to_socket[fd]

            except (BlockingIOError, InterruptedError):
                pass

Perfect! Let’s write a simple educational chat server using kqueue in Python. This will illustrate the whole workflow: socket creation, kevent registration, and the event loop.

This server will:

Accept multiple clients.
Broadcast messages from one client to all others.
Use non-blocking sockets and kqueue.

import socket
import select
import errno

HOST = '127.0.0.1'
PORT = 12345

# --- Step 1: Create server socket ---
server_sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
server_sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
server_sock.bind((HOST, PORT))
server_sock.listen()
server_sock.setblocking(False)  # important for event-driven I/O

print(f"Chat server running on {HOST}:{PORT}")

# --- Step 2: Create kqueue ---
kq = select.kqueue()

# Register server socket for READ events (new connections)
kev = select.kevent(server_sock.fileno(),
                    filter=select.KQ_FILTER_READ,
                    flags=select.KQ_EV_ADD)
kq.control([kev], 0, 0)

# Map file descriptor → socket object
fd_to_socket = {server_sock.fileno(): server_sock}

# --- Step 3: Event loop ---
while True:
    # Wait for events, max 10 at a time, timeout 1 second
    events = kq.control(None, 10, 1.0)

    for kev in events:
        fd = kev.ident
        sock = fd_to_socket[fd]

        if sock is server_sock:
            # --- New client connection ---
            client_sock, addr = server_sock.accept()
            client_sock.setblocking(False)
            fd_to_socket[client_sock.fileno()] = client_sock

            # Register client for READ events
            kev_client = select.kevent(client_sock.fileno(),
                                       filter=select.KQ_FILTER_READ,
                                       flags=select.KQ_EV_ADD)
            kq.control([kev_client], 0, 0)

            print(f"Client connected from {addr}")

        else:
            # --- Client sent data ---
            try:
                data = sock.recv(4096)
                if data:
                    # Broadcast to all other clients
                    msg = data.decode().strip()
                    print(f"Received from {fd}: {msg}")
                    for other_fd, other_sock in fd_to_socket.items():
                        if other_sock is not server_sock and other_sock is not sock:
                            try:
                                other_sock.sendall(data)
                            except BlockingIOError:
                                pass
                else:
                    # Client closed connection
                    print(f"Client {fd} disconnected")
                    kq.control([select.kevent(fd,
                                               filter=select.KQ_FILTER_READ,
                                               flags=select.KQ_EV_DELETE)], 0, 0)
                    sock.close()
                    del fd_to_socket[fd]

            except (BlockingIOError, InterruptedError):
                pass

How it works

Server socket:
- Non-blocking, registered with kqueue for READ events (incoming connections).
New client:
- Accept connection, set non-blocking, register client fd with kqueue.
Event loop:
- Call kqueue.control(None, max_events, timeout) to get ready events.
- For server fd → accept new client.
- For client fd → read data and broadcast.
Client disconnect:
- Remove fd from kqueue and close the socket.

This is single-threaded, event-driven, no blocking anywhere.
You could easily add WRITE events if you want to handle buffered outgoing messages separately.
Perfect for educational purposes to see kevent → kqueue → event loop in action.

Cleaner version

using selectors

import selectors
import socket

HOST = "127.0.0.1"
PORT = 12345

# --- Step 1: Create selector ---
sel = selectors.DefaultSelector()

# --- Step 2: Accept new client connections ---
def accept(sock):
    client_sock, addr = sock.accept()
    print("Connected from:", addr)
    client_sock.setblocking(False)
    sel.register(client_sock, selectors.EVENT_READ, read_client)

# --- Step 3: Read client data ---
def read_client(client_sock):
    try:
        data = client_sock.recv(4096)
    except BlockingIOError:
        return

    if data:
        msg = data.decode().strip()
        print(f"[{client_sock.fileno()}] {msg}")

        # Broadcast to all clients
        for key, mask in sel.get_map().items():
            s = key.fileobj
            if s not in (server_sock, client_sock):
                try:
                    s.sendall(data)
                except BlockingIOError:
                    pass
    else:
        # Client disconnected
        print(f"Client {client_sock.fileno()} disconnected")
        sel.unregister(client_sock)
        client_sock.close()

# --- Step 4: Create server socket ---
server_sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
server_sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
server_sock.bind((HOST, PORT))
server_sock.listen()
server_sock.setblocking(False)

sel.register(server_sock, selectors.EVENT_READ, accept)

print(f"Chat server running on {HOST}:{PORT}")

# --- Step 5: Event loop ---
while True:
    events = sel.select(timeout=1)  # blocks until events ready
    for key, mask in events:
        callback = key.data     # accept or read_client
        sock = key.fileobj
        callback(sock)
