Foundation and Inputs

This document synthesizes foundational knowledge about operating systems, asynchronous programming, and building APIs with FastAPI.

---

📚 Table of Contents

1. Part 1: Understanding Operating Systems (OS Fundamentals)
   • File Descriptors
   • Selectors and I/O Monitoring
   • Socket Programming
   • Event Loop
2. Part 2: Concurrency in Python
   • Threading
   • Processes and Multiprocessing
   • ThreadPool and ProcessPool
   • Fork in Unix
   • CPython vs Pure Python
   • Thread and Scope
3. Part 3: Web Concepts
   • HTTP Basics
   • REST Architecture
   • APIs and JSON
4. Part 4: FastAPI Introduction
   • What is FastAPI?
   • Setup and Installation
   • asyncio in Python

---

Part 1: Understanding Operating Systems

1. File Descriptors

Definition

A File Descriptor (FD) is an integer that the operating system uses to identify I/O resources such as files, sockets, and pipes.

Characteristics of File Descriptors:

Property	Description
Is an integer	A non-negative number (0, 1, 2, ...)
Local to process	Each process has its own FD table
Assigned by OS	OS automatically assigns when opening a resource
Not global	FD 5 in process A ≠ FD 5 in process B

Standard File Descriptors:

# Standard FDs are reserved
FD 0 = stdin  (Standard Input)
FD 1 = stdout (Standard Output)
FD 2 = stderr (Standard Error)
FD 3+ = User-opened files, sockets, pipes...

Listing File Descriptors:

import os

# Method 1: Using /dev/fd (MacOS/Unix)
fds = os.listdir("/dev/fd")
print(fds)  # ['0', '1', '2', '3', ...]

# Method 2: Using os.fstat()
open_fds = []
for fd in range(0, 1024):
    try:
        os.fstat(fd)
        open_fds.append(fd)
    except OSError:
        pass
print(open_fds)

Common FD Types:

import stat

# Check file descriptor type
mode = os.fstat(fd).st_mode

stat.S_ISREG(mode)  # Regular file
stat.S_ISDIR(mode)  # Directory
stat.S_ISCHR(mode)  # Character device
stat.S_ISBLK(mode)  # Block device
stat.S_ISFIFO(mode) # Pipe
stat.S_ISSOCK(mode) # Socket
stat.S_ISLNK(mode)  # Symlink

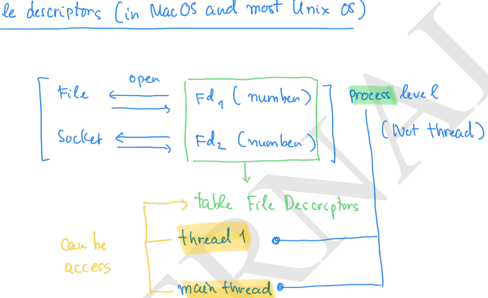

FDs and Threads:

Important

• FDs are managed at the Process level, not Thread level
• Threads within the same process share the FD table
• Use mutex/lock to avoid race conditions

---

2. Selectors and I/O Monitoring

Selectors is a module that helps monitor multiple file descriptors to check I/O status (ready to read/write) without blocking.

What Selectors Do:

Event	Meaning
EVENT_READ	FD is ready to read (non-blocking)
EVENT_WRITE	FD is ready to write (non-blocking)

What Selectors Do NOT Do:

• ❌ Read/write data
• ❌ Manage timeouts or threading
• ❌ Handle application logic

Example Using Selectors:

import selectors
import socket

# Create selector
sel = selectors.DefaultSelector()

# Create socket
sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.bind(('localhost', 12345))
sock.listen()

# Register socket to monitor EVENT_READ
sel.register(sock, selectors.EVENT_READ)

# Blocking call waiting for events
events = sel.select(timeout=1)
for key, mask in events:
    if key.fileobj == sock:
        connection, address = sock.accept()
        print(f"Accepted connection from {address}")

---

3. Socket Programming

What is a Socket?

A socket is an endpoint for network communication. When you create a socket, the OS allocates a file descriptor to manage it.

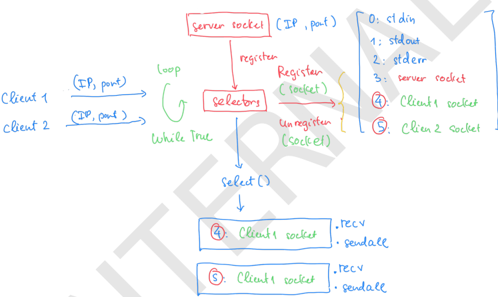

Server-Client Pattern with Selectors:

import selectors
import socket

sel = selectors.DefaultSelector()

# Create server socket
server_sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
server_sock.bind(("0.0.0.0", 5555))
server_sock.listen()
server_sock.setblocking(False)

# Register server socket
sel.register(server_sock, selectors.EVENT_READ)

def accept_connection(sock):
    client_sock, addr = sock.accept()
    print(f"Accepted connection from {addr}")
    client_sock.setblocking(False)
    sel.register(client_sock, selectors.EVENT_READ)

def handle_client(sock):
    data = sock.recv(1024)
    if data:
        print("Received:", data.decode())
        sock.sendall(b"Message received\n")
    else:
        print("Client disconnected")
        sel.unregister(sock)
        sock.close()

# Event loop
while True:
    events = sel.select()
    for key, mask in events:
        sock = key.fileobj
        if sock is server_sock:
            accept_connection(sock)
        else:
            handle_client(sock)

Socket Pair:

import socket

# Create a pair of connected sockets
s1, s2 = socket.socketpair()

s1.send(b"Hello")
print(s2.recv(1024))  # b'Hello'

s2.send(b"World")
print(s1.recv(1024))  # b'World'

Use Case

Socket pairs are commonly used to wake up the event loop when there are new tasks to process.

---

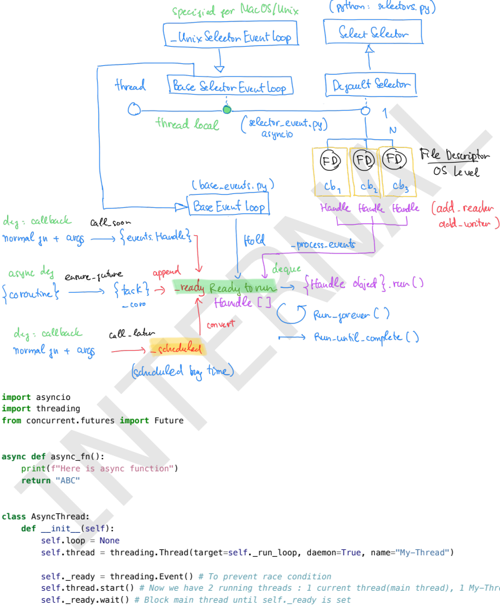

4. Event Loop

Event Loop Concept:

Definition

An Event Loop is an infinite loop that monitors events (I/O, timers, callbacks) and dispatches them to their corresponding handlers.

Characteristics of Event Loop in Python:

┌────────────────────┐
│    Main Thread     │
└────────────────────┘
         │
         ▼
    Event Loop A
   (running/idle)
         │
    ┌────┴────┐
    │  Tasks  │
    │ Queue   │
    └─────────┘

• Each event loop is attached to 1 thread
• Each thread has only 1 running loop at any given time
• You can create multiple loops but only 1 runs

Creating an Event Loop:

import asyncio

# Get the current event loop (or create a new one)
loop = asyncio.get_event_loop()

# Or create a new loop
loop = asyncio.new_event_loop()
asyncio.set_event_loop(loop)

# Run a coroutine
async def async_fn():
    print("Hello from async")
    return "Done"

result = loop.run_until_complete(async_fn())
print(result)  # Done

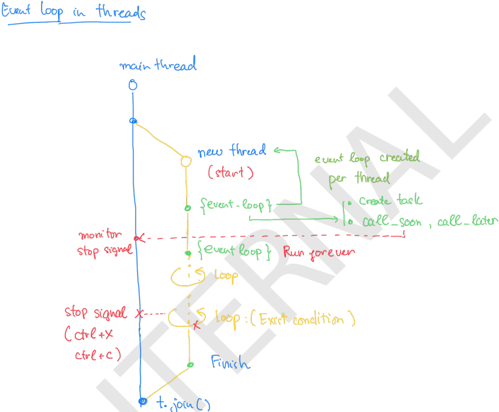

AsyncThread Pattern:

Pattern for running an event loop in a separate thread:

import asyncio
import threading
from concurrent.futures import Future

class AsyncThread:
    def __init__(self):
        self.loop = None
        self.thread = threading.Thread(
            target=self._run_loop,
            daemon=True,
            name="AsyncThread"
        )
        self._ready = threading.Event()
        self.thread.start()
        self._ready.wait()  # Block until loop is ready

    def _run_loop(self):
        self.loop = asyncio.new_event_loop()
        asyncio.set_event_loop(self.loop)
        self._ready.set()
        self.loop.run_forever()

    def submit(self, coro) -> Future:
        return asyncio.run_coroutine_threadsafe(coro, self.loop)

    def shutdown(self):
        self.loop.call_soon_threadsafe(self.loop.stop)
        self.thread.join()
        self.loop.close()

# Usage
async def my_task():
    return "Hello from thread"

async_thread = AsyncThread()
future = async_thread.submit(my_task())
print(future.result())  # "Hello from thread"

Self-Implement Event Loop with Socket Pair:

import socket
import selectors
import threading

sel = selectors.DefaultSelector()

class MyEventLoop:
    def __init__(self):
        self.fns = []
        self._ssock, self._csock = socket.socketpair()
        self._ssock.setblocking(False)
        self._csock.setblocking(False)
        sel.register(self._ssock, selectors.EVENT_READ, self._wakeup_handler)

    def start(self):
        def run_forever():
            while True:
                events = sel.select(timeout=1)
                for key, mask in events:
                    callback = key.data
                    callback(key.fileobj, mask)
        t = threading.Thread(target=run_forever)
        t.start()

    def _wakeup_handler(self, sock, mask):
        sock.recv(1024)  # Drain wakeup byte
        for fn in self.fns:
            fn()

    def add_reader(self, fn):
        self.fns.append(fn)

    def wakeup(self):
        self._csock.send(b"\0")  # Wake up the loop

---

Part 2: Concurrency in Python

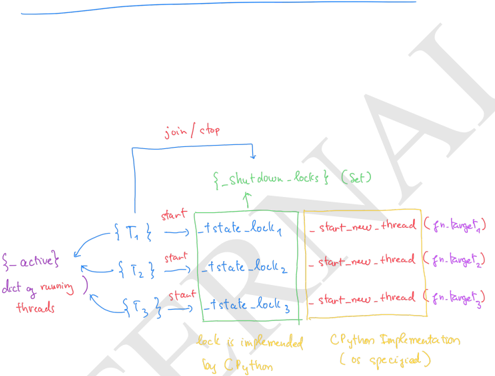

1. Threading in Python

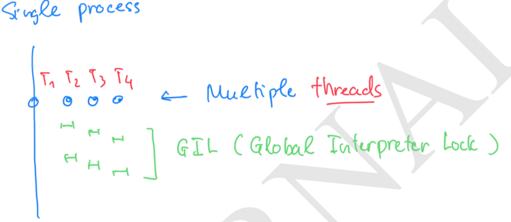

GIL - Global Interpreter Lock:

Important About GIL

The GIL is a mutex that ensures only 1 thread executes Python bytecode at a time, even on multi-core CPUs.

Characteristic	Impact
I/O-bound tasks	Threads work well (GIL is released when waiting for I/O)
CPU-bound tasks	Threads are inefficient (no real parallelism)

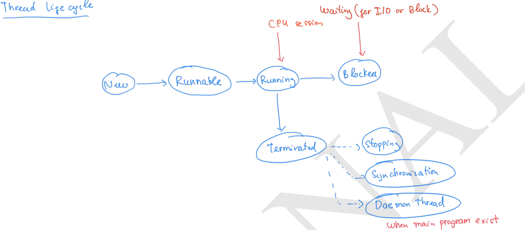

Thread Lifecycle:

New (Created) → Runnable (Ready) → Running → Blocked/Waiting → Terminated
       ↑            ↓                           ↓
       └────────────┴───────────────────────────┘

States:

1. New: Thread object is created, start() not yet called
2. Runnable: After start(), waiting for CPU time
3. Running: Currently executing run()
4. Blocked/Waiting: Waiting for I/O, lock, sleep, join
5. Terminated: run() completed or exception occurred

Threading Example:

import threading
import time

def worker(name):
    print(f"Thread {name} starting")
    time.sleep(1)
    print(f"Thread {name} finished")

# Create threads
t1 = threading.Thread(target=worker, args=("T1",))
t2 = threading.Thread(target=worker, args=("T2",))

# Start threads
t1.start()
t2.start()

# Wait for completion
t1.join()
t2.join()
print("All done!")

---

2. Processes and Multiprocessing

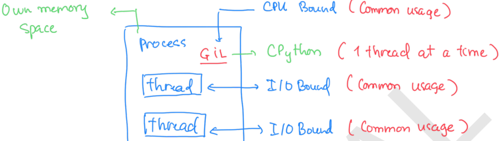

Comparing Thread vs Process:

Feature	Thread	Process
Memory	Shared (same process)	Separate (independent)
Creation overhead	Low	High
Python parallelism	Limited (GIL)	True parallelism
Crash isolation	Crash affects all	Independent
Use case	I/O-bound tasks	CPU-bound tasks

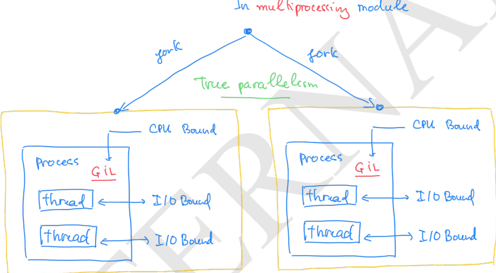

Multiprocessing Bypasses GIL:

from multiprocessing import Process
import time

def cpu_task():
    s = time.time()
    for _ in range(50_000_000):
        pass
    print(f"Process finished in {time.time() - s}")

# Create 2 processes
p1 = Process(target=cpu_task)
p2 = Process(target=cpu_task)

start = time.time()
p1.start(); p2.start()
p1.join(); p2.join()
print(f"Total time: {time.time() - start}")

# Output: ~1.3s (parallel)
# With threads: ~2s (sequential due to GIL)

Why is multiprocessing faster?

• 1 process → 1 CPython interpreter → 1 GIL
• 4 processes → 4 interpreters → 4 GILs (parallel)

---

3. ThreadPool

ThreadPool helps manage and reuse threads efficiently:

from multiprocessing.pool import ThreadPool

def work(x):
    return x * x

# Create pool with 4 worker threads
pool = ThreadPool(processes=4)

# Map function to list
results = pool.map(work, [1, 2, 3, 4, 5])
print(results)  # [1, 4, 9, 16, 25]

# Cleanup
pool.close()
pool.join()

---

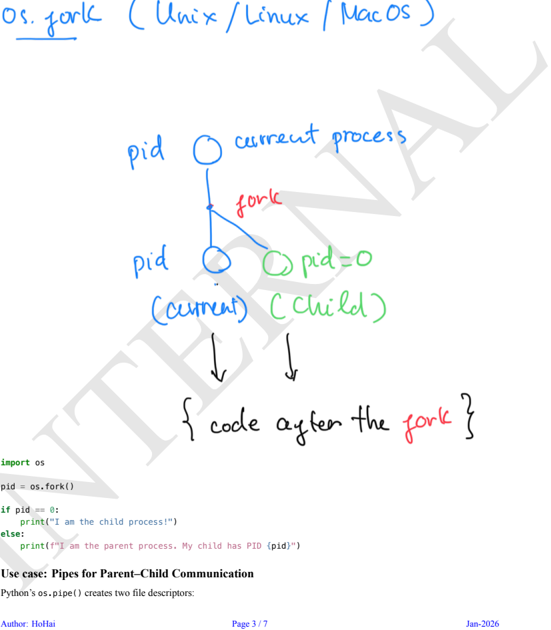

4. Fork in Unix

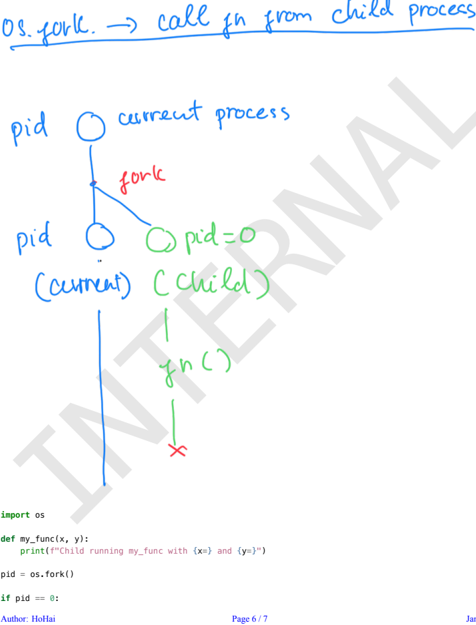

Basic os.fork():

import os

pid = os.fork()

if pid == 0:
    print("I am the CHILD process!")
else:
    print(f"I am the PARENT, child PID: {pid}")

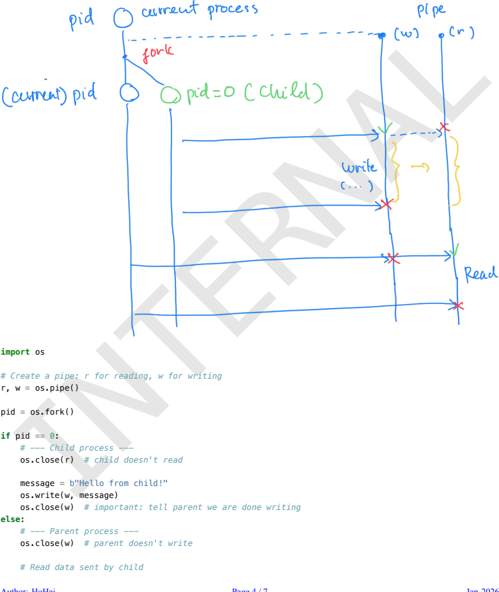

Parent-Child Communication via Pipe:

import os

# Create pipe: r for reading, w for writing
r, w = os.pipe()

pid = os.fork()

if pid == 0:
    # Child process
    os.close(r)  # Child doesn't read
    os.write(w, b"Hello from child!")
    os.close(w)
else:
    # Parent process
    os.close(w)  # Parent doesn't write
    data = os.read(r, 1024)
    print("Parent received:", data.decode())
    os.close(r)

Warning

os.fork() is dangerous in multi-threaded programs because it copies threads and resources, which can cause deadlocks. Use the multiprocessing module instead.

---

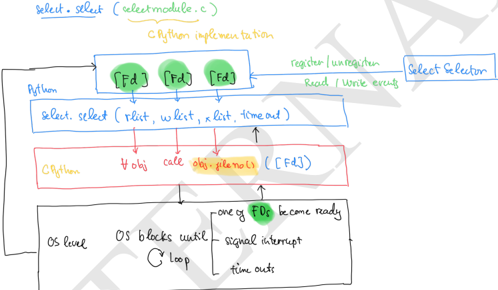

5. CPython vs Pure Python

CPython often has 2 versions of the same module:

Version	Characteristics
C implementation	Fast, optimized performance
Pure Python	Portable, readable, fallback

Reasons:

1. Performance: C version is much faster
2. Portability: Python version runs everywhere
3. Maintainability: Python version is the reference implementation
4. Fallback: If C version fails, Python version substitutes

# Example: threading.local
# - C version: _thread._local (fast)
# - Python wrapper: threading.local (nice API)

---

6. Thread and Scope

Threads Share Global Scope:

import threading
import time

count = 0  # Global variable

def try_count(name):
    global count
    count += 1
    time.sleep(0.1)
    print(f"Thread {name}: count = {count}")

t1 = threading.Thread(target=try_count, args=("T1",))
t2 = threading.Thread(target=try_count, args=("T2",))

t1.start(); t2.start()
t1.join(); t2.join()
# Output: Both threads may see count = 2 (race condition!)

Thread-Safe with Lock:

import threading

count = 0
lock = threading.Lock()

def try_count(name):
    global count
    with lock:  # Acquire lock
        count += 1
        print(f"Thread {name}: count = {count}")
    # Lock is automatically released

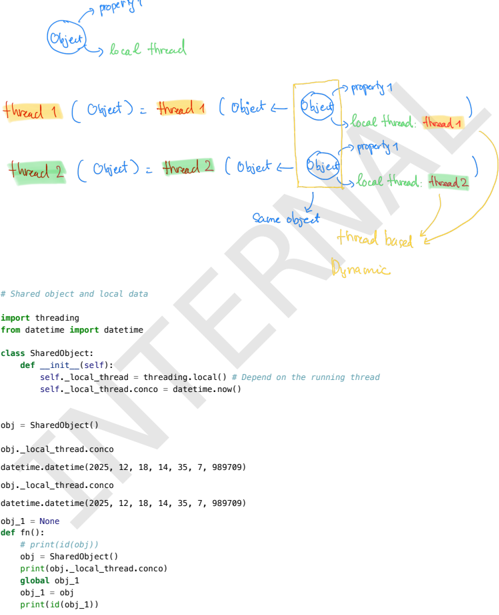

Thread Local Storage:

Each thread has its own data:

import threading

thread_local = threading.local()

def worker(name):
    thread_local.count = 0
    thread_local.count += 1
    print(f"Thread {name}: count = {thread_local.count}")

t1 = threading.Thread(target=worker, args=("T1",))
t2 = threading.Thread(target=worker, args=("T2",))

t1.start(); t2.start()
# Output: Each thread has its own count = 1

---

Part 3: Web Concepts

1. HTTP Basics

What is the World Wide Web?

• Internet: The global network connecting devices
• Web: A service running on the Internet for accessing websites
• Analogy: Internet = roads, Web = cars and destinations

HTTP vs HTTPS:

Feature	HTTP	HTTPS
Port	80	443
Security	Plain text	SSL/TLS encrypted
Data protection	None	Confidentiality + Integrity

Request-Response Cycle:

Client                    Server
  │                          │
  │──── GET /products ──────►│
  │                          │
  │◄─── 200 OK ─────────────│
  │     {"id": 1, "name": "Laptop"}

HTTP Methods:

Method	Purpose	Idempotent
GET	Retrieve data	✅
POST	Create resource	❌
PUT	Update resource	✅
DELETE	Delete resource	✅
PATCH	Partial update	❌

HTTP Status Codes:

Range	Meaning	Examples
2xx	Success	200 OK, 201 Created
3xx	Redirection	301 Moved, 302 Found
4xx	Client Error	400 Bad Request, 404 Not Found
5xx	Server Error	500 Internal Error, 503 Unavailable

---

2. REST Architecture

REST Principles:

1. Client-Server: Separation of client and server
2. Stateless: Each request contains all necessary information, server doesn't store state
3. Cacheable: Response should indicate if it can be cached
4. Uniform Interface: Consistent interaction method (HTTP methods)
5. Layered System: Can have multiple layers (load balancers, proxies)

Resources and Endpoints:

Resource: User
Endpoints:
  GET    /users         → List all users
  GET    /users/{id}    → Get specific user
  POST   /users         → Create user
  PUT    /users/{id}    → Update user
  DELETE /users/{id}    → Delete user

Statelessness Benefits:

• ✅ Easy to scale horizontally (add more servers)
• ✅ No shared session needed
• ✅ Each request is independent

---

3. APIs and JSON

Types of APIs:

Type	Characteristics
REST	HTTP methods, JSON, simple, scalable
GraphQL	Query language, request exact data needed
SOAP	XML-based, strict, enterprise

JSON Structure:

{
  "id": 101,
  "name": "Laptop",
  "price": 1200.5,
  "in_stock": true,
  "tags": ["electronics", "computers"],
  "specs": {
    "cpu": "Intel i7",
    "ram": "16GB"
  }
}

JSON vs XML:

Feature	JSON	XML
Format	Lightweight	Verbose with tags
Readability	Easy to read	Harder to read
Data types	Strings, numbers, booleans, arrays	Everything is text
Usage	Modern APIs	Legacy systems, SOAP

---

Part 4: FastAPI Introduction

1. What is FastAPI?

Definition

FastAPI is a modern, high-performance Python web framework for building APIs, built on Starlette (web handling) and Pydantic (data validation).

Why is FastAPI Popular?

Feature	Benefit
Speed	One of the fastest Python frameworks
Async Support	Built-in async/await, high concurrency
Type Hints	Auto validation, reduces bugs
Auto Docs	Swagger UI and ReDoc automatically generated

Comparison with Flask and Django:

Feature	FastAPI	Flask	Django
Performance	Very high	Moderate	Moderate
Async	Built-in	Extra setup	Limited
Type Hints	Full	Minimal	Minimal
Auto Docs	Yes	No	No
Best for	APIs, microservices	Simple apps	Full-stack

2. Setup and Installation

Installation:

pip install "fastapi[standard]" uvicorn

Hello World:

from fastapi import FastAPI

app = FastAPI()

@app.get("/")
async def read_root():
    return {"message": "Hello, FastAPI!"}

@app.get("/items/{item_id}")
async def read_item(item_id: int, q: str = None):
    return {"item_id": item_id, "query": q}

Running the Application:

# Development mode
uvicorn main:app --reload

# Or
fastapi dev main.py

Pydantic Models:

from pydantic import BaseModel, Field

class Item(BaseModel):
    name: str = Field(..., min_length=3, max_length=50)
    description: str | None = None
    price: float = Field(..., gt=0)
    in_stock: bool = Field(default=True)

@app.post("/items/")
async def create_item(item: Item):
    return {"received": item}

Interactive Docs:

• Swagger UI: http://127.0.0.1:8000/docs
• ReDoc: http://127.0.0.1:8000/redoc
• OpenAPI Schema: http://127.0.0.1:8000/openapi.json

---

3. asyncio in Python

What is asyncio?

Definition

asyncio is Python's asynchronous I/O framework, allowing you to write sequential-looking code that executes many tasks concurrently without needing multiple threads/processes.

How It Works:

1. Write coroutines with async def
2. Use await to pause when waiting for I/O
3. Event loop schedules tasks efficiently

import asyncio

async def say_after(delay, msg):
    await asyncio.sleep(delay)  # Non-blocking sleep
    print(msg)

async def main():
    # Run 2 tasks concurrently
    await asyncio.gather(
        say_after(2, "Hello"),
        say_after(1, "World")
    )

asyncio.run(main())
# Output after 2 seconds:
# World (after 1s)
# Hello (after 2s)

Comparing asyncio with Threading and Multiprocessing:

Feature	Threading	Multiprocessing	asyncio
CPU usage	No (GIL)	Yes (parallel)	No (single thread)
Concurrency	OS-level	OS-level	Cooperative
Memory	Low	High	Very low
I/O tasks	Good	Works	Excellent
CPU tasks	Inefficient	Excellent	Not suitable

When to Use asyncio?

• ✅ Web servers, network clients
• ✅ Many concurrent I/O tasks
• ✅ Avoid thread overhead
• ✅ Scale thousands of connections
• ❌ DO NOT use for CPU-bound tasks

---

📖 References

Learning FastAPI

Resource	Link	Duration
Official FastAPI Tutorial	fastapi.tiangolo.com	2-3 hrs
Concurrency Guide	FastAPI Async/Await	20-30 min
Path Parameters	Path Params Guide	15 min
Query Parameters	Query Params Guide	15 min

Learning Checklist:

• Install FastAPI and run your first app with Uvicorn
• Explain HTTP methods, request-response cycle
• Implement both def and async def endpoints
• Define path parameters with type hints
• Add query parameters with default values
• Observe validation errors when type is wrong
• View Swagger UI /docs and ReDoc /redoc
• Check OpenAPI schema /openapi.json
• Create a mini API combining all concepts

---

Summary

This document provides a solid foundation on:

1. OS-level concepts: File Descriptors, Sockets, Event Loop
2. Python Concurrency: Threading, Multiprocessing, asyncio
3. Web fundamentals: HTTP, REST, APIs
4. FastAPI: Modern Python web framework

Understanding these concepts will help you build efficient and scalable APIs with FastAPI.
